Problem / Fix - Dryer from Early 2000s 🛠️#
Older hardware is often easier to diagnose since the components are larger and the circuits are simpler.

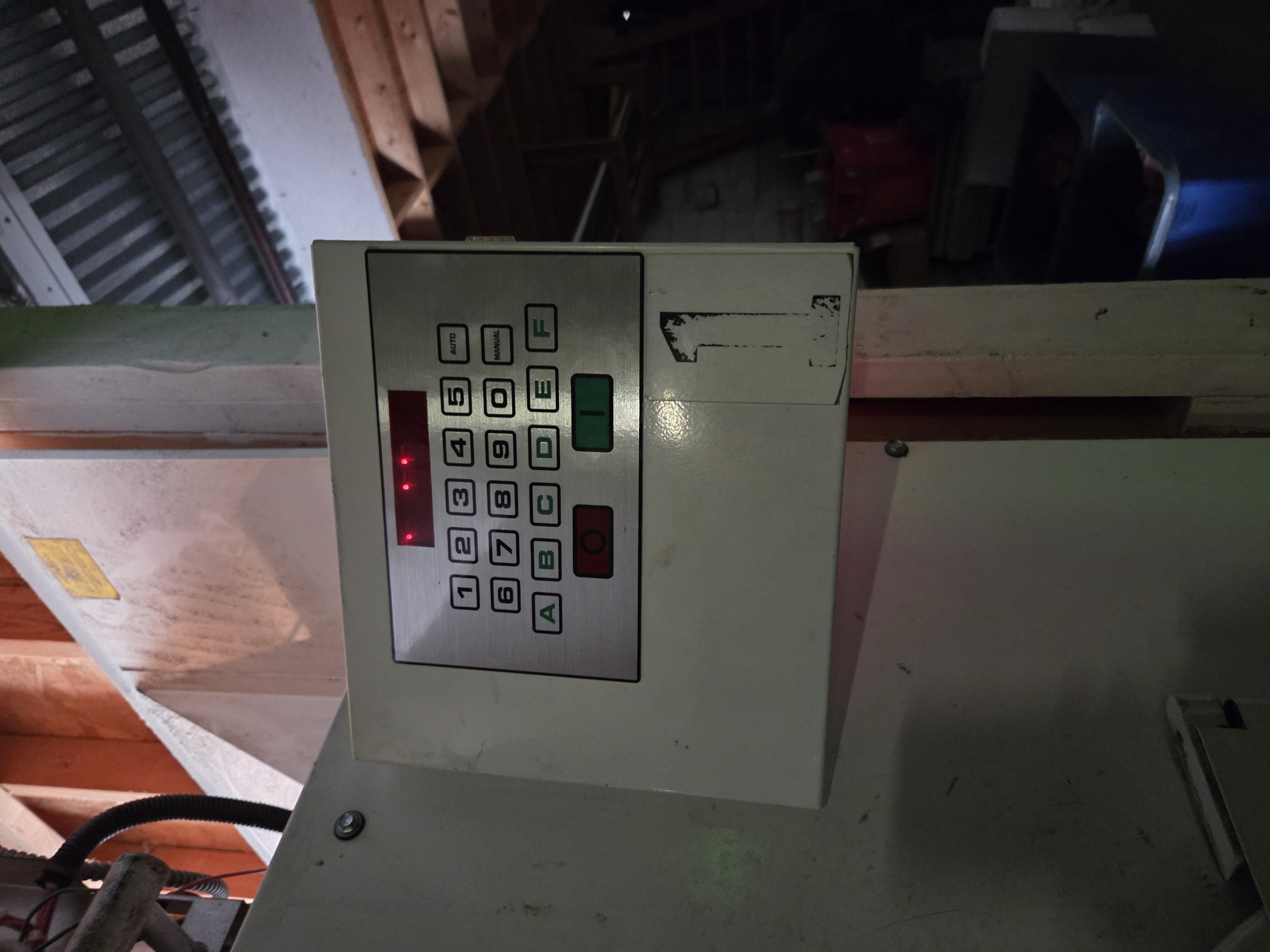

The control board’s display would flicker when the dryer got hot, and the machine would malfunction around that time.

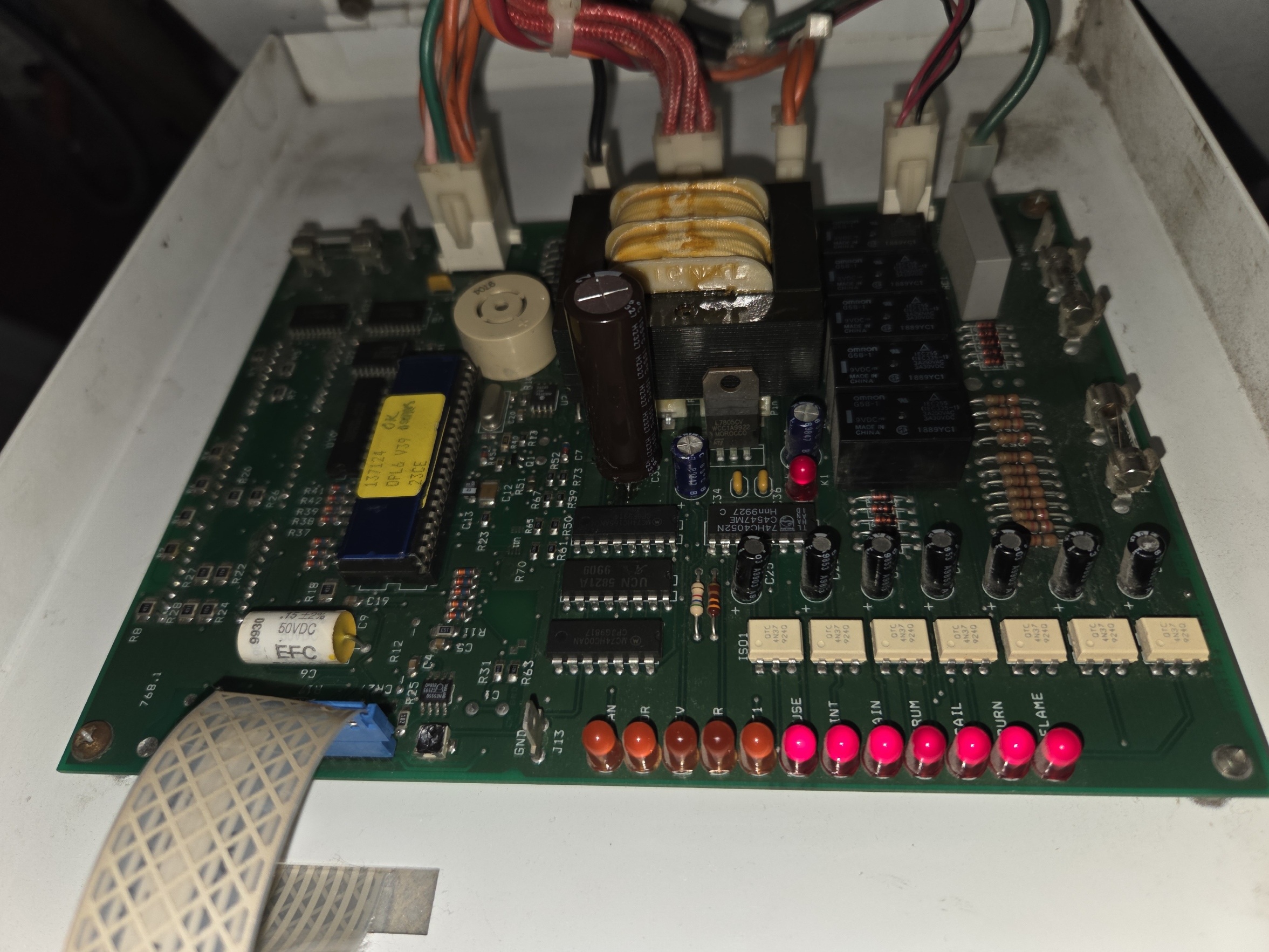

Wiggling the large 2200µF 25V capacitor seemed to relieve the problem for a short time.

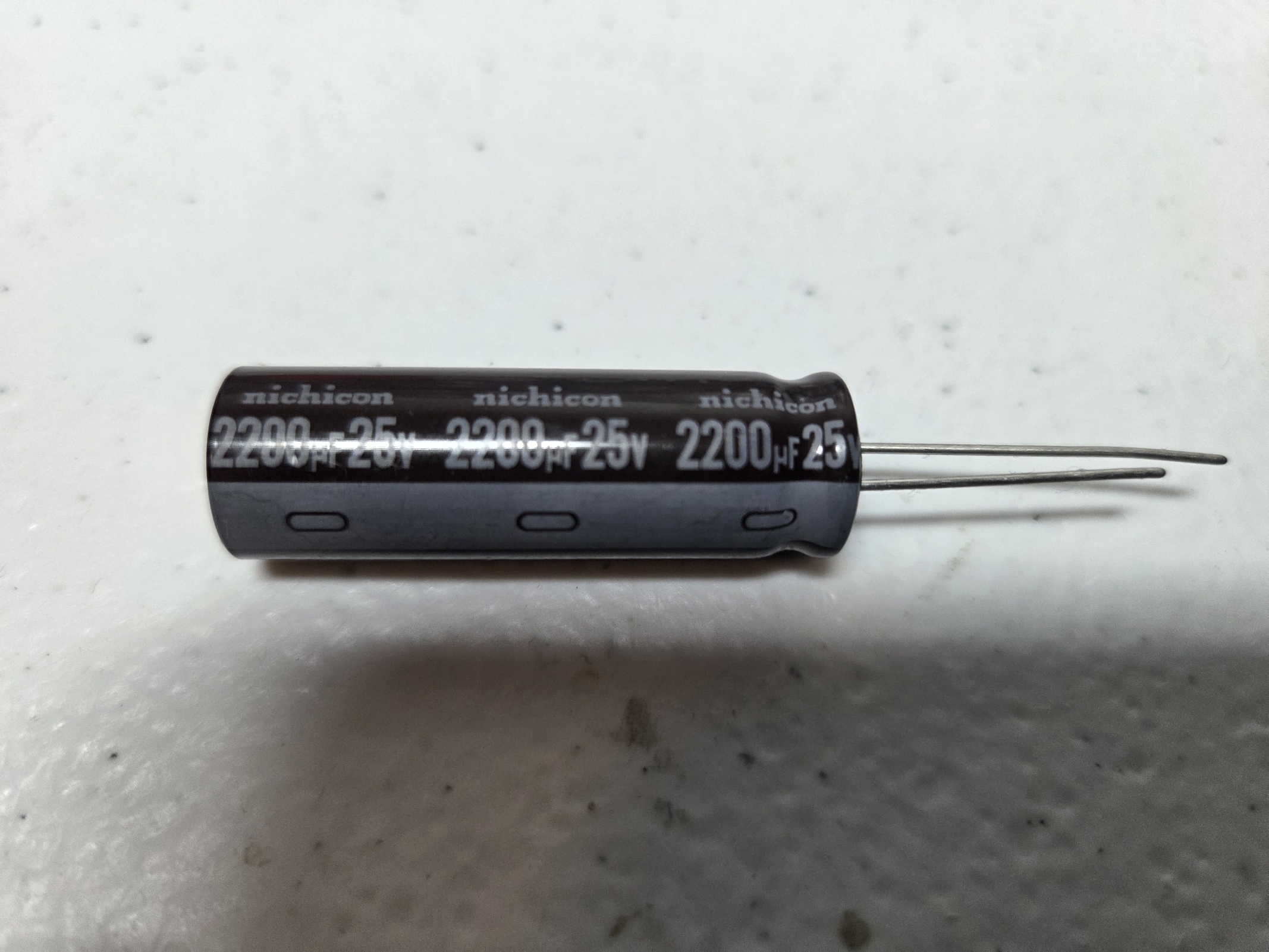

So, I replaced the capacitor with a suitable component from Digi-Key ( https://www.digikey.com/en/products/detail/nichicon/UPM1E222MHD/2599588 ), and the problem is officially fixed!
The dryer now runs stable.
Why the Capacitor? 💡#
Since this dryer is from the early 2000s, back when capacitor production was still a tad unstable, it was likely due for a change years ago.
As electrolytic capacitors age, the fluid inside them starts to change, and their values drift. This compromises the stability of the power supply.
Solved!
